Up Down Air
4 Tire Inflation System (Universal)

Up Down Air
4 Tire Inflation System (Universal)

SKU: UDA-121114 | MPN: 88-9999

$299.99
$299.99
Sale Sold out
Shipping calculated at checkout.
  • Usually ships within 1-3 business days.
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
    • Affirm Icon

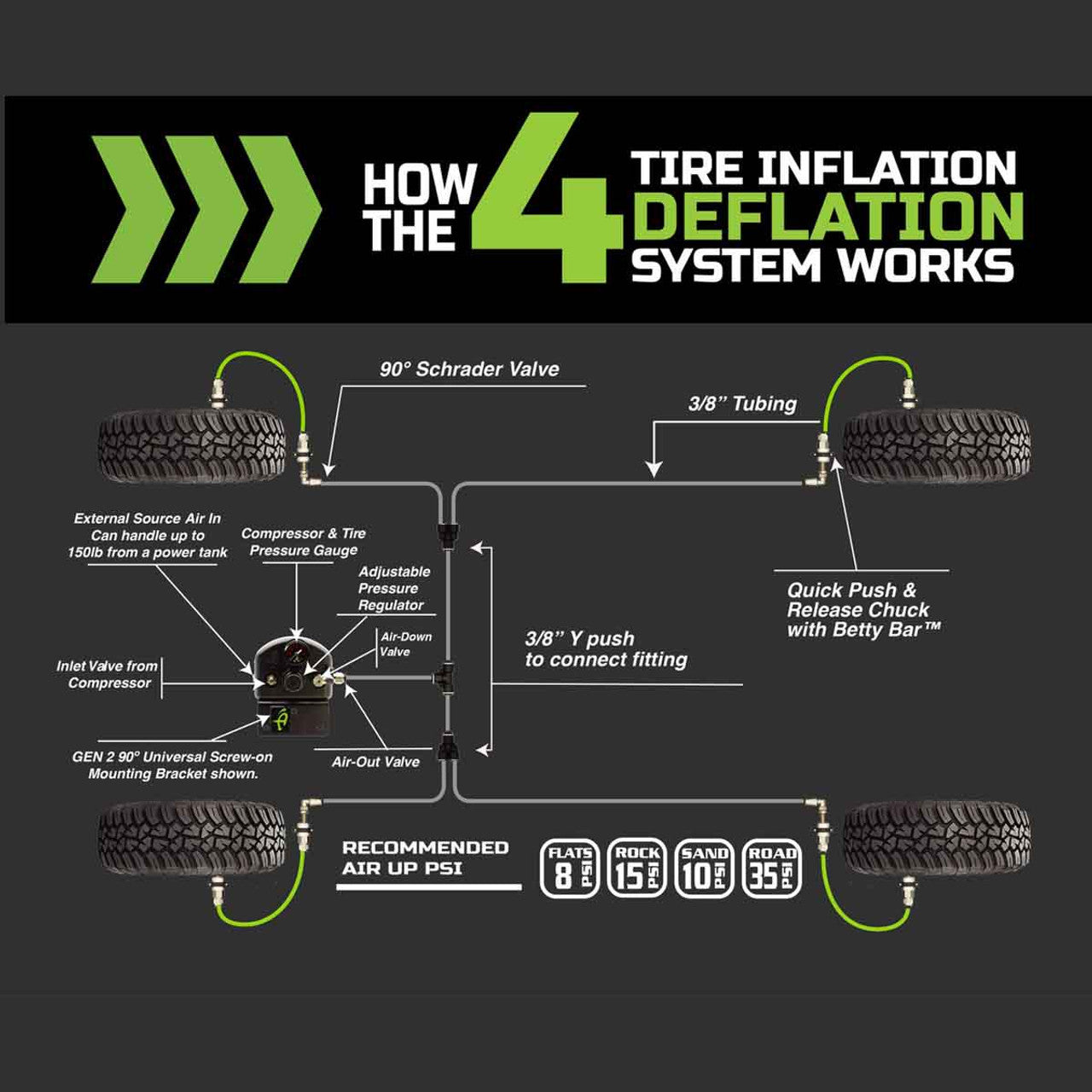

The Up Down Air Universal 4 Tire Inflation System (Gen2) is designed to make tire pressure management easy by allowing you to inflate or deflate all four tires simultaneously. This system can be used with an onboard air source or a portable air pump via an external Schrader valve. It features DOT-approved 3/8" air lines, quick-connect chucks with Betty Bar, and an ADS control box with an air regulator and 90-degree Schrader valves. The kit includes pre-cut hoses and quick-connect fittings for fast and easy installation on any vehicle.

View full details

Description

The Up Down Air Universal 4 Tire Inflation System (Gen2) is designed to make tire pressure management easy by allowing you to inflate or deflate all four tires simultaneously. This system can be used with an onboard air source or a portable air pump via an external Schrader valve. It features DOT-approved 3/8" air lines, quick-connect chucks with Betty Bar, and an ADS control box with an air regulator and 90-degree Schrader valves. The kit includes pre-cut hoses and quick-connect fittings for fast and easy installation on any vehicle.

Additional Information

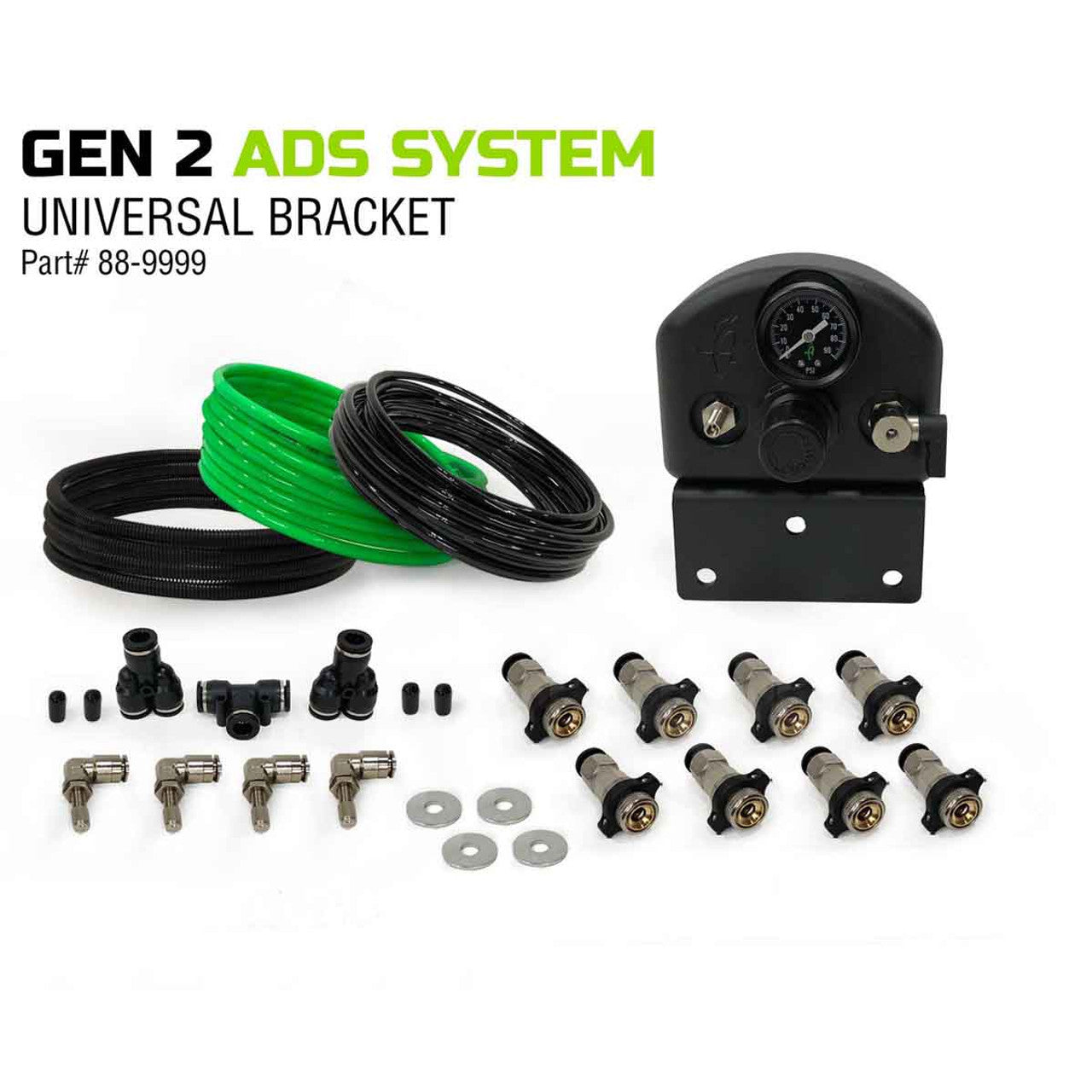

Includes:

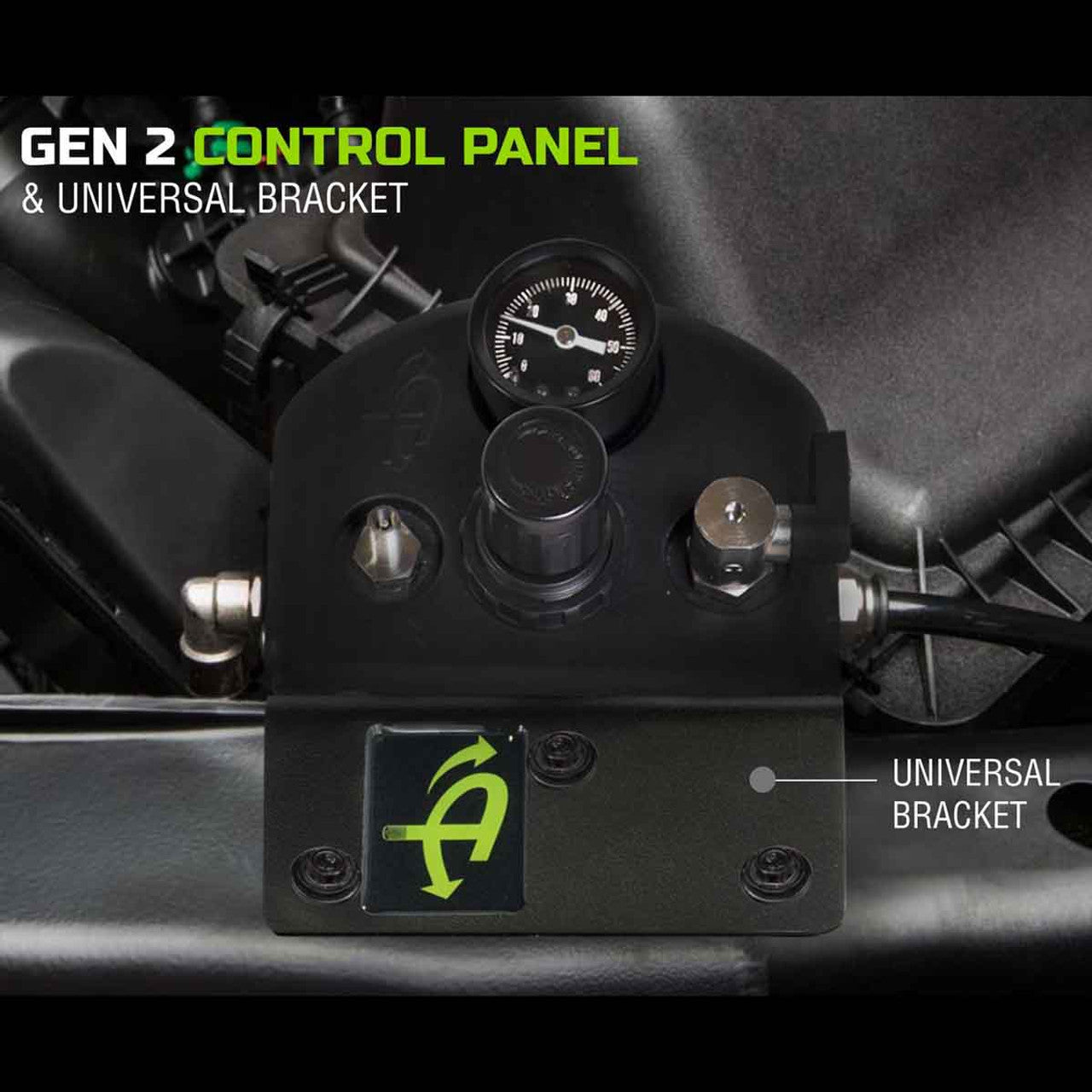

  • ADS Controller Box
  • 90 psi Pressure Regulator
  • 150 psi Blow-off Valve
  • Pre-cut Hoses
  • Push To Connect Fittings
  • 8 Quick Connect Chucks with the easy to use Betty Bar™ feature
  • 4 Green Tire Connect Whips with a Storage Bag

Notes:

  • Designed to work with EGOI 2, ARB, and Viair compressors.
  • Can be used with CO2 systems pre-regulated to 150psi.

Vehicle Fitment:

  • 1987-1995 Wrangler YJ
  • 1997-2006 Wrangler TJ
  • 2004-2006 Wrangler Unlimited LJ
