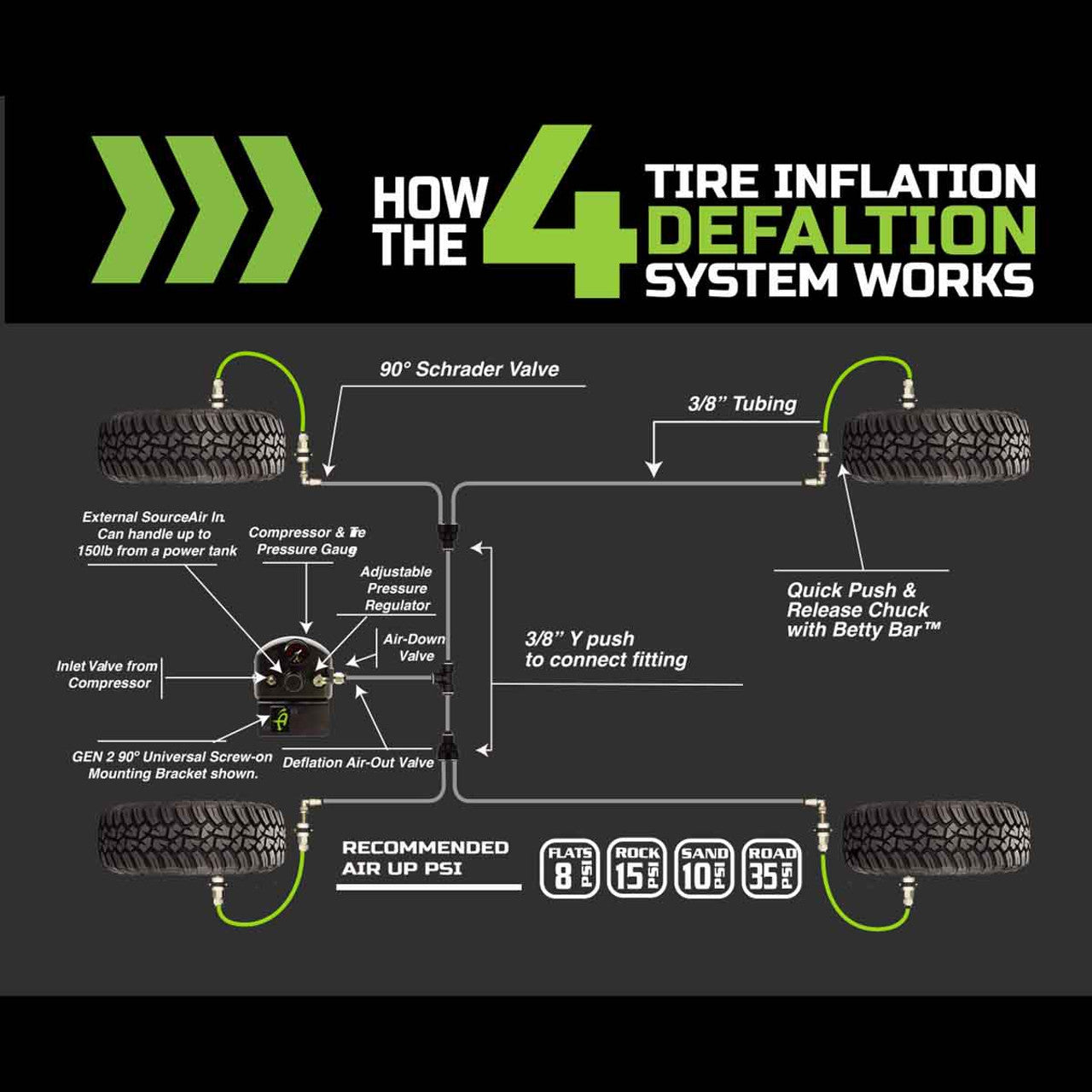

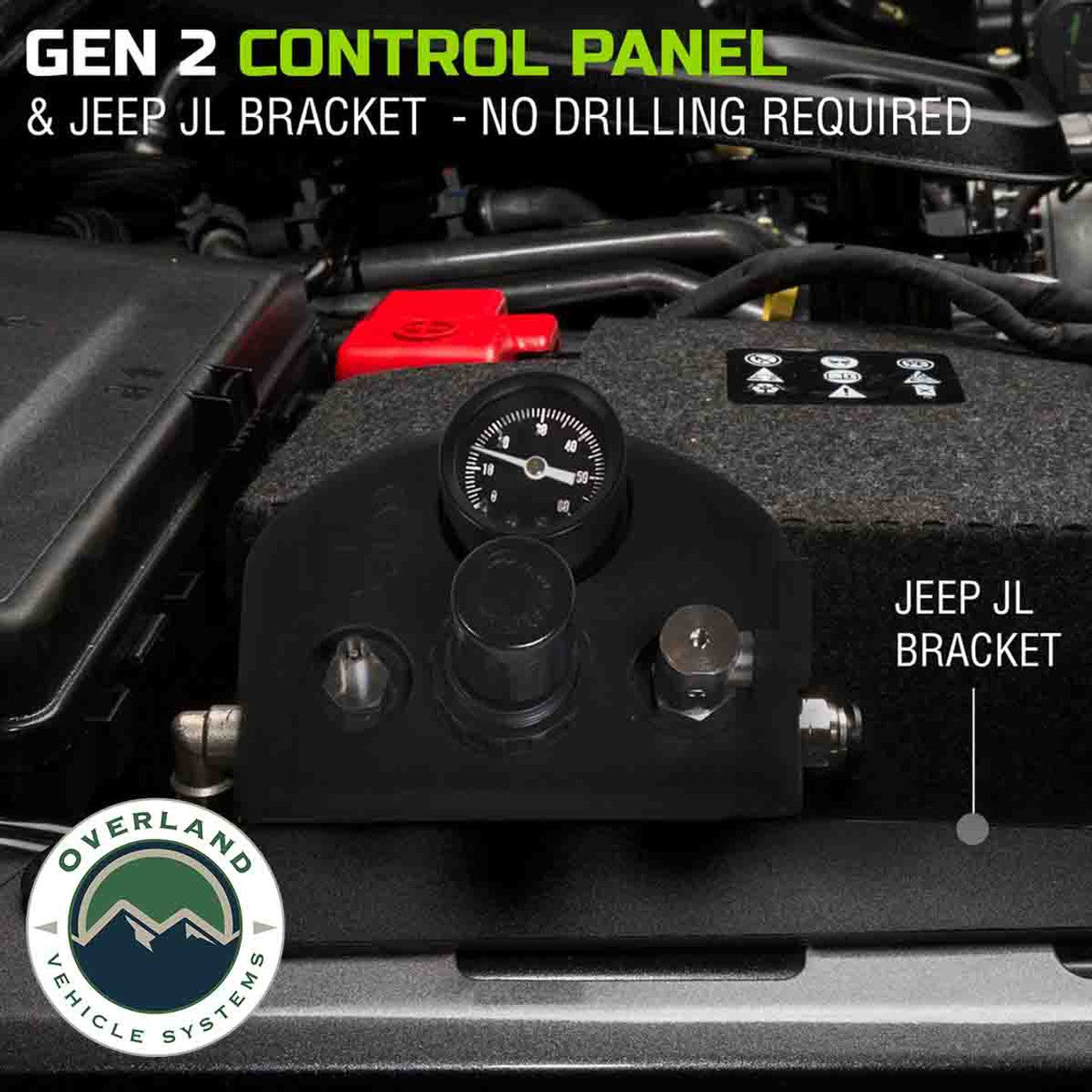

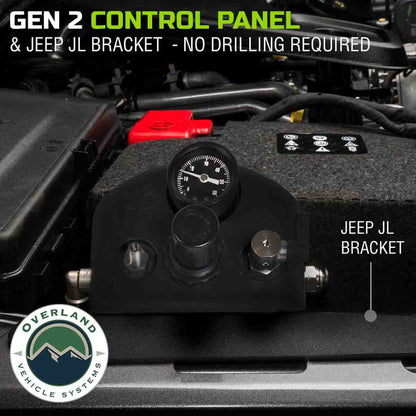

The Up Down Air 4 Tire Inflation System for 2018-Current Jeep Wrangler JL/JLU is designed to inflate or deflate all four tires simultaneously for easy tire pressure management. This Gen2 Air Delivery System (ADS) mounts on the passenger side of the engine bay and can operate with an onboard air source or a portable air pump via an external Schrader valve. It features DOT-approved 3/8” air lines, quick-connect chucks with Betty Bar, and an ADS control box with an air regulator and 90-degree Schrader valves. Pre-cut hoses and quick-connect fittings allow for quick and hassle-free installation.

View full details

Description

The Up Down Air 4 Tire Inflation System for 2018-Current Jeep Wrangler JL/JLU is designed to inflate or deflate all four tires simultaneously for easy tire pressure management. This Gen2 Air Delivery System (ADS) mounts on the passenger side of the engine bay and can operate with an onboard air source or a portable air pump via an external Schrader valve. It features DOT-approved 3/8” air lines, quick-connect chucks with Betty Bar, and an ADS control box with an air regulator and 90-degree Schrader valves. Pre-cut hoses and quick-connect fittings allow for quick and hassle-free installation.

Additional Information

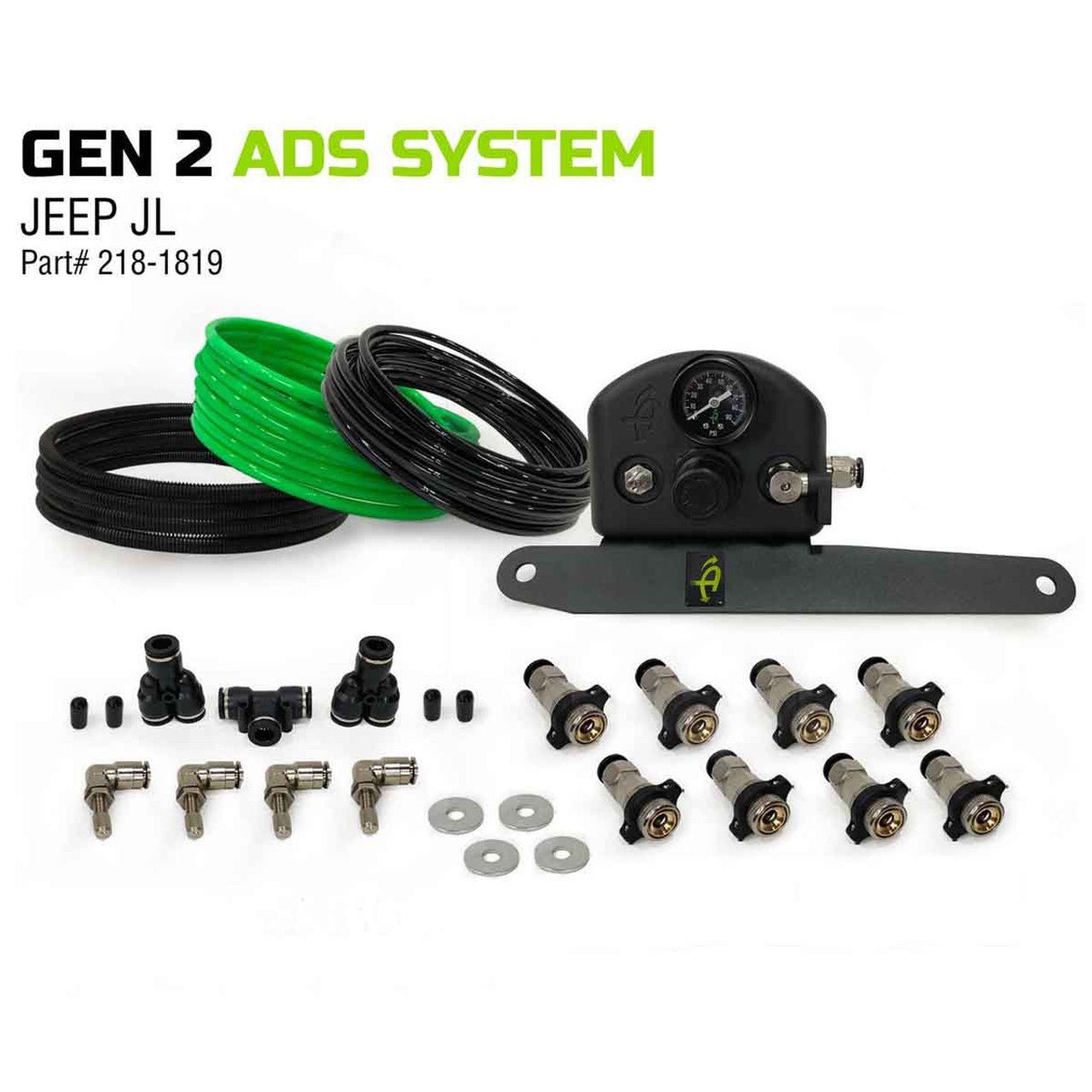

Includes:

  • ADS Controller Box
  • 90 psi Pressure Regulator
  • 150 psi Blow-off Valve
  • Pre-cut Hoses
  • Push To Connect Fittings
  • 8 Quick Connect Chucks with the easy to use Betty Bar™ feature

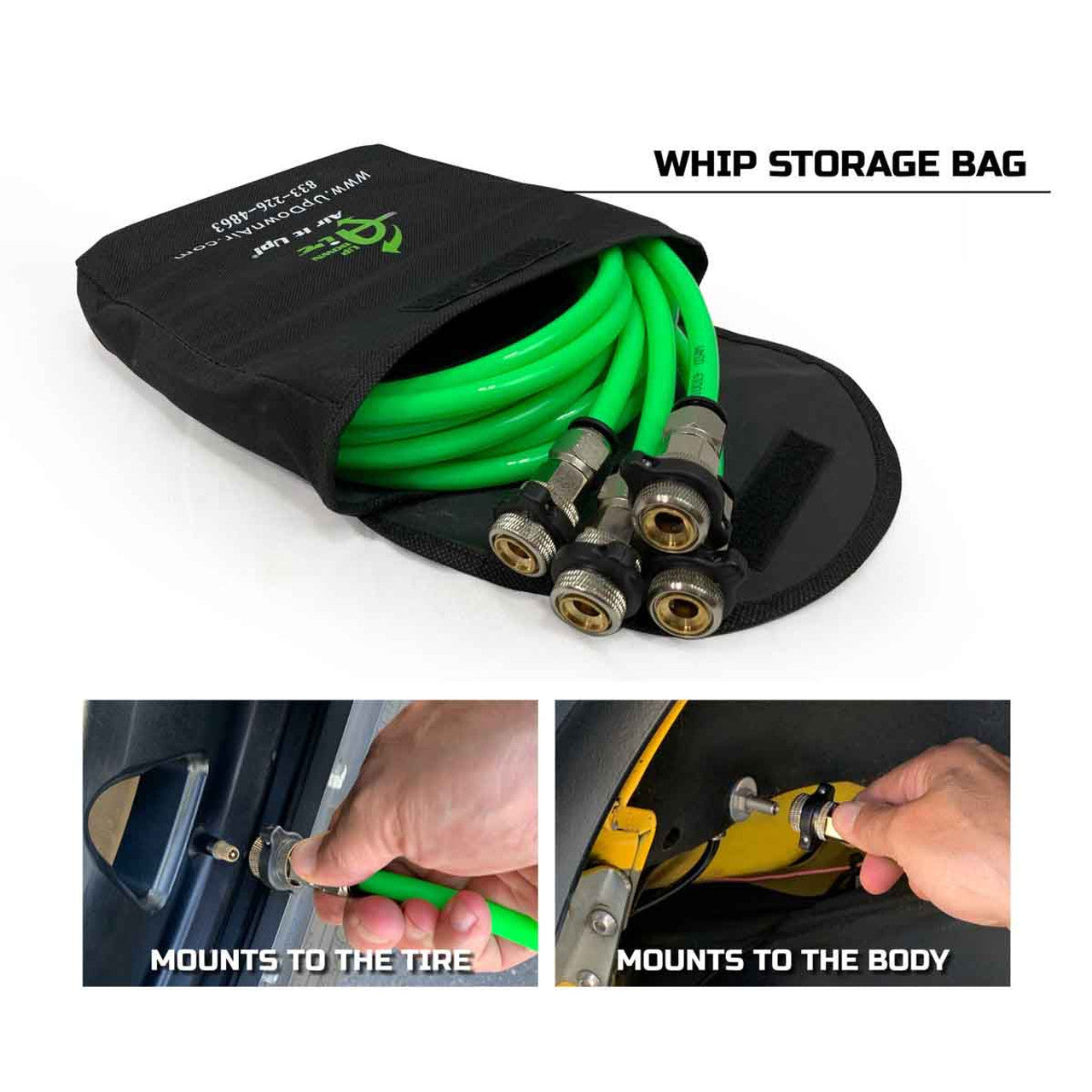

  • 4 Green Tire Connect Whips with a Storage Bag

Notes:

  • DOES NOT WORK ON DIESEL JL
  • Designed to work with EGOI 2, ARB, and Viair compressors.
  • Can be used with CO2 systems pre-regulated to 150psi.

Need Help? Installation Instructions

Vehicle Fitment:

  • 2018-Current Wrangler JL
  • 2018-Current Wrangler Unlimited JLU
