Genesis Offroad

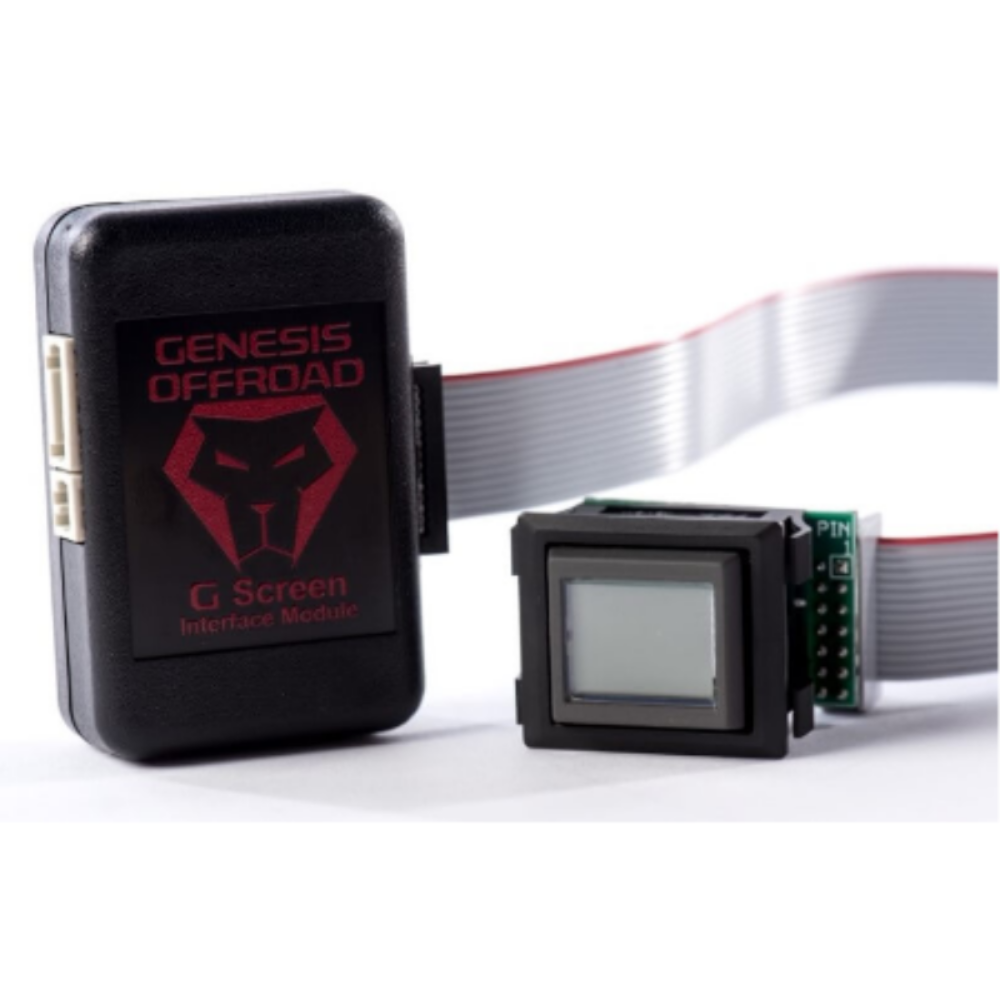

G-Screen for Gen 3 Dual Battery Systems

Keep an eye on your dual battery system's status with ease

• Monitor voltage levels of both batteries.
• Check the remote status indicator to see if batteries are connected or disconnected.
• Utilize the remote boost button to jump-start your engine from inside the cab if your cranking battery is dead.

Visual battery status indication

• Green: Both batteries are fully charged and connected.
• Yellow: Batteries are below 12.7v and disconnected.
• Red: At least one battery is below 12v, indicated by blinking red to grab your attention.

Efficient power usage

• Background light automatically turns off after 45 seconds of inactivity.
• Preserves battery power and reduces glare during night drives.
• Voltage and status remain visible, albeit without backlighting.

Main Battery Voltage:

• Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.

Aux Battery Voltage:

• Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.

Status Screen:

• AUTO mode: The system automatically connects/disconnects the batteries based on voltage levels.
• AUTO OFF: The batteries are isolated from each other.
• AUTO ON: The batteries are connected together.

Selecting Boost:

• Choosing "On" manually connects the batteries together. This is useful for jump-starting from the second battery if your main battery is too low to start the engine.
• The batteries will stay connected until you select Boost Off or Auto mode.
• Please note: In this mode, all electrical circuits in the vehicle will run from both batteries.

Selecting Boost:

• Opting for "Boost" manually separates the batteries. They will stay separated until you choose Boost On or Auto mode.
• Please note: While in this mode, your Aux battery won't be charged by the alternator.

Selecting Auto:

• Choosing "Auto" activates the Automatic mode for the system.
• In this mode, the system operates automatically.

On-Board Air Tank Pressure Display:

• This screen indicates the air pressure in your on-board air tank, provided you have the optional Digital Air Pressure Sensor kit installed.
• Please note: Without the sensor installed, this screen will not be displayed.

Firmware Version Display:

• Quickly check the firmware version with this screen.

 .

 .

Contrast Adjustment Menu:

• Hold down this screen for 3 seconds to access the contrast adjustment menu.
• Tap through 5 levels of contrast for optimal viewing.
